Kriega OS mounting plate for Yamaha Tenere 700

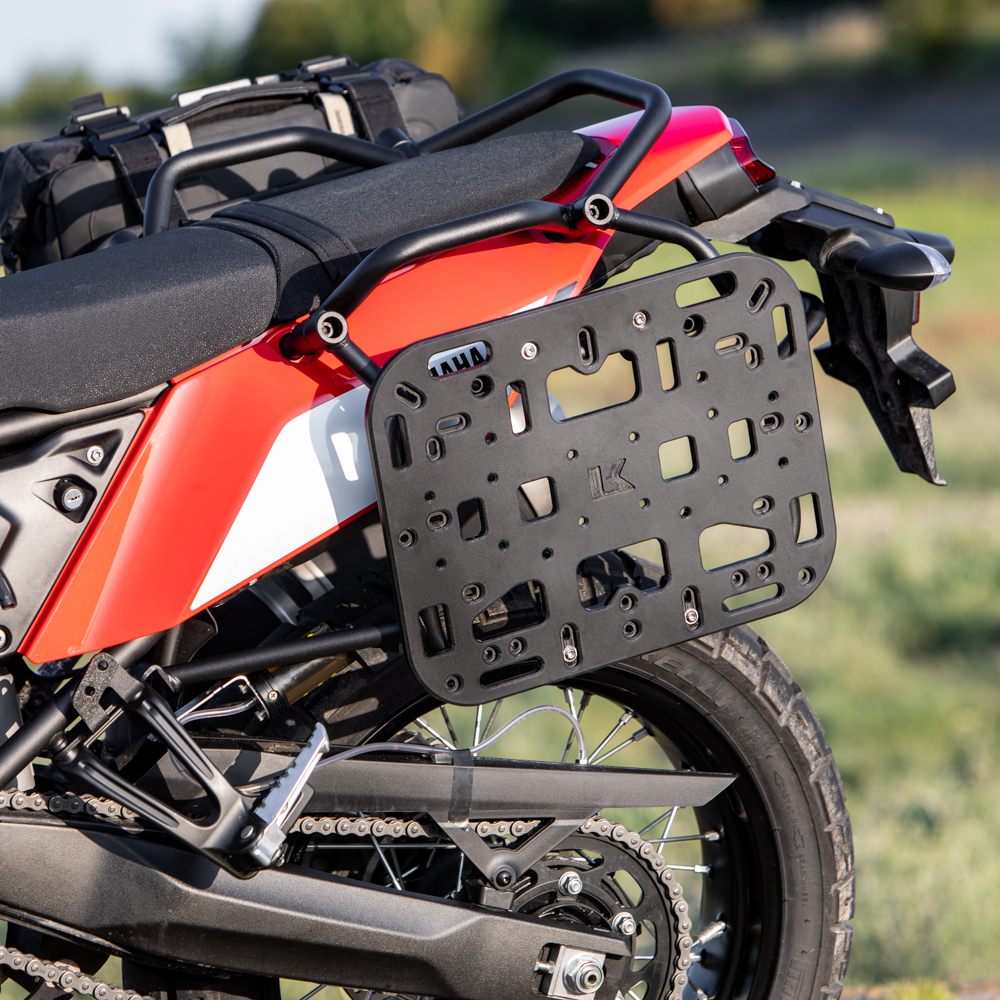

YAMAHA and GIVI pannier racks are designed for mounting aluminium housings and do not have a flat standard profile on the exhaust side. This special edition OS plate for the Yamaha Tenere 700 includes a stainless steel adapter to flatten the profile and provides a secure mounting for the OS plate so that you can fit the Kriega Soft bags.
The adapter is made of laser-cut stainless steel and is attached to the OS plate with 3 bolts and Nyloc nuts. It is attached to the top of the BMW frame with 2 aluminium clamps. The remaining 4 clamps attach the OS plate directly to the frame and provide a very strong and stable base to mount an OS case, OS adventure packs or Rotopax™ fuel or water tanks.
The Yamaha case holder on the side opposite the exhaust is flat and therefore a standard OS plate pipe fitment of 16 mm to 20 mm can be mounted on this side without any problems.
TIP: So you need this adapter for both sides, once for the exhaust side here and for the other side the normal one with the article number: 65050017UNI (is also linked again below)
Features:
- enables the secure attachment of your Kriega OS bag
- easy to mount
- for Yamaha Tenere 700
Dimensions & weight:
- 390(w)mm x 300(h)mm x 10(d)mm
- 1450g incl. the adapter
Compatibility:
- 16 - 20 mm frame thickness
- Kriega OS bags
- Kriega OS-32 or OS-22 or a single 1.75 Rotopax ™ fuel or water tank
- OS-6 or OS-12 ADAPTER PACKAGE with single or double 1 gallon Rotopax™ fuel / water tanks.

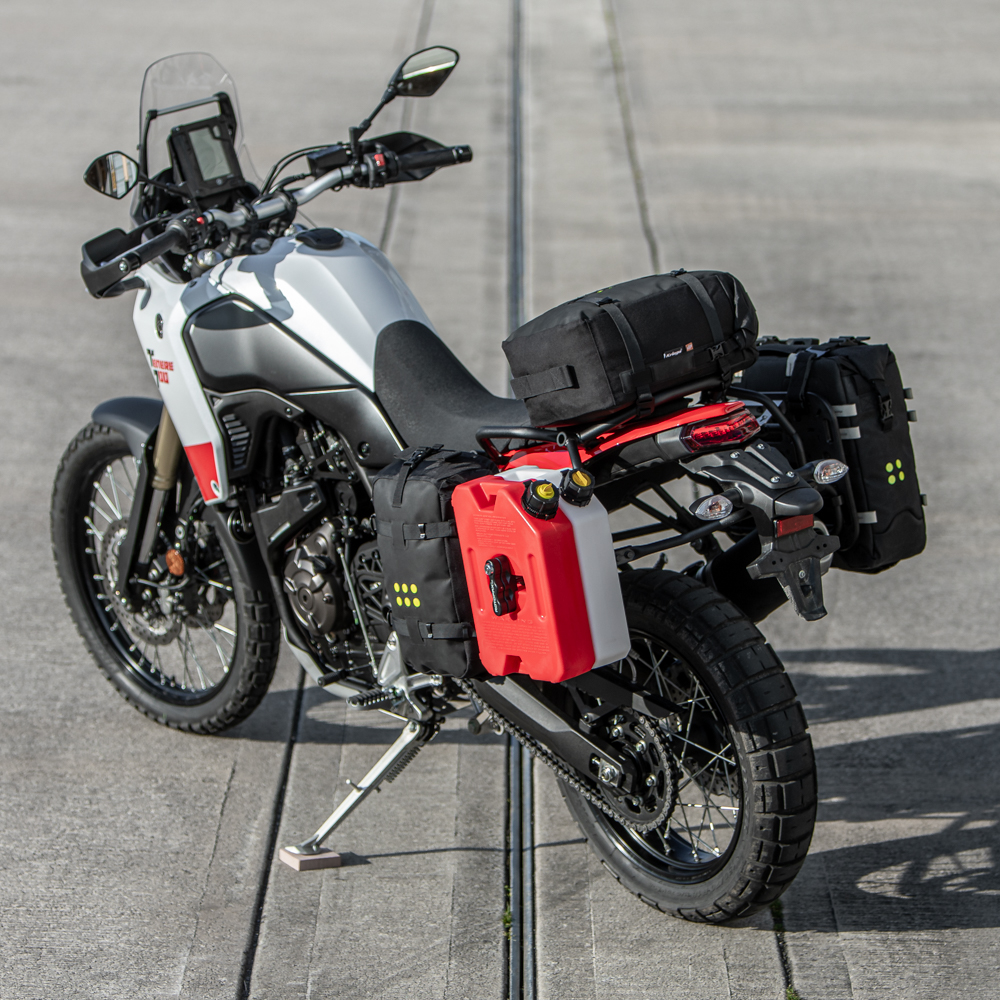

Info: Rotopax™ 1.75 & 1 gallon fuel tanks will also fit, however we do NOT recommend fitting fuel tanks to the exhaust side of the motorbike.
Included in the scope of delivery:
- 1 x Kriega mounting plate with adapter for the exhaust side of your Yamaha Tenere 700
Download instructions:
